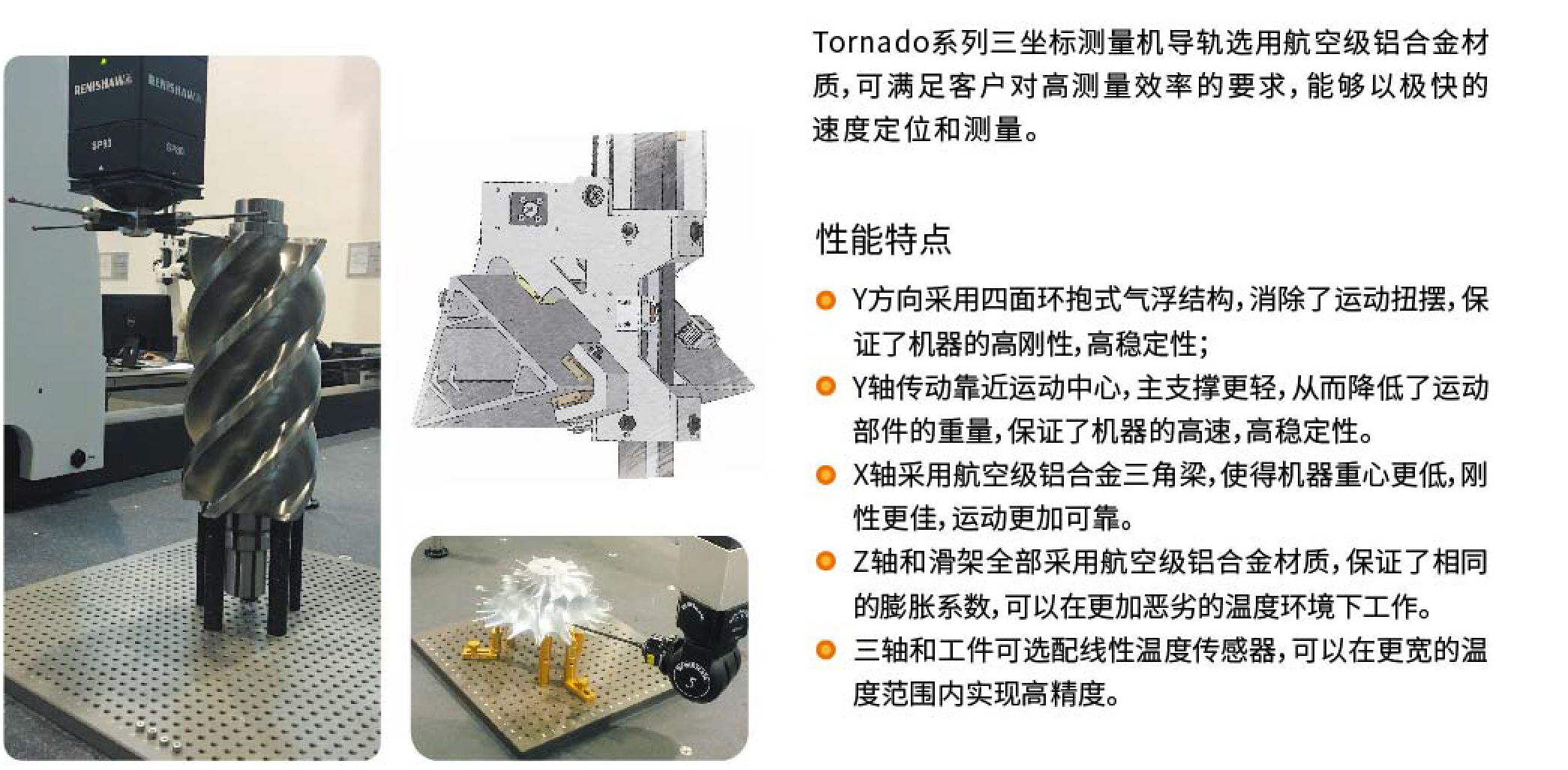

Tornado系列三坐標測量機導軌選用航空級鋁合金材質，可滿足客戶對高測量效率的要求，能夠以極快的速度定位和測量。
Y方向采用四面環抱式氣浮結構，消除了運動扭擺，保證了機器的高剛性，高穩定性；
Y軸傳動靠近運動中心，主支撐更輕，從而降低了運動部件的重量，保證了機器的高速，高穩定性。
X軸采用航空級鋁合金三角梁，使得機器重心更低，剛性更佳，運動更加可靠。
Z軸和滑架全部采用航空級鋁合金材質，保證了相同的膨脹系數，可以在更加惡劣的溫度環境下工作。
三軸和工件可選配線性溫度傳感器，可以在更寬的溫度范圍內實現高精度。
| 型號 | 行程范圍 | 精度指標 | 主機外廓尺寸 | 允許工件尺寸 | 系統凈重 | 被測工件最大重量 | 3D最大速度 | 3D最大加速度 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MODEL | STROKES | MEASURING ACCURACY | OVERALL SIZE | WORK ENVELOPE | WEIGHT | PART WEIGHT | 3D Max Speed | 3D Max Accelerate Speed | |||||||||
| ISO10360-2:2009/GB/T16857.2-2006 | |||||||||||||||||
| X | Y | Z | Lx | Ly | Lz | Wx | Wy | Wz | |||||||||
| mm | mm | mm | MPEE(μm) | MPEP(μm) | mm | mm | mm | mm | mm | mm | kg | kg | mm/s | mm/s2 | |||
| NCA454 | 400 | 500 | 400 | from1.8+3.3L/1000 | from1.9 | 1000 | 1240 | 2240 | 525 | 9950 | 600 | 570 | 500 | 750 | 1800 | ||
| NCA564 | 500 | 600 | 400 | from1.8+3.3L/1000 | from1.9 | 1100 | 1340 | 2240 | 625 | 1095 | 600 | 700 | 500 | 750 | 1800 | ||
| NCA686 | 600 | 800 | 600 | from1.9+3.3L/1000 | from2 | 1200 | 1650 | 2660 | 730 | 1400 | 800 | 960 | 700 | 750 | 1800 | ||
| NCA8106 | 800 | 1000 | 600 | from1.9+3.3L/1000 | from2 | 1400 | 1850 | 2660 | 930 | 1600 | 800 | 1270 | 1000 | 750 | 1800 | ||
| NCA8XX6 | 800 | XX | 600 | from1.9+3.3L/1000 | from2.0 | 1400 | xx | 2660 | 930 | xx | 800 | xx | xx | xx | xx | ||
| NCA10128 | 1000 | 1200 | 800 | from2.4+3.3L/1000 | from2.4 | 1690 | 2370 | 3150 | 1190 | 1814 | 1040 | 2460 | 1800 | 530 | 1750 | ||
| NCA10158 | 1000 | 1500 | 800 | from2.4+3.3L/1000 | from2.4 | 1690 | 2670 | 3150 | 1190 | 2114 | 1040 | 2820 | 1800 | 530 | 1750 | ||
| NCA10208 | 1000 | 2000 | 800 | from2.4+3.3L/1000 | from2.4 | 1690 | 2370 | 3150 | 1190 | 2614 | 1040 | 3410 | 1800 | 530 | 1750 | ||
| NCA10XX8 | 1000 | XX | 800 | from2.4+3.3L/1000 | from2.4 | 1690 | xx | 3150 | 1190 | xx | 1040 | xx | xx | xx | xx | ||
| NCA121510 | 1200 | 1500 | 1000 | from2.7+3.3L/1000 | from2.7 | 1890 | 2750 | 3330 | 1390 | 2200 | 1200 | 3330 | 2000 | 450 | 1050 | ||
| NCA122010 | 1200 | 2000 | 1000 | from2.7+3.3L/1000 | from2.7 | 1890 | 3350 | 3330 | 1390 | 2700 | 1200 | 3910 | 2000 | 450 | 1050 | ||
| NCA12XX10 | 1200 | XX | 1000 | from2.7+3.3L/1000 | from2.7 | 1890 | xx | 3330 | 1390 | xx | 1200 | xx | xx | xx | xx | ||
| NCA152010 | 1500 | 2000 | 1000 | from3.0+3.3L/1000 | from3 | 2190 | 3350 | 3370 | 1690 | 2700 | 1200 | 5220 | 3000 | 450 | 1050 | ||
| NCA152510 | 1500 | 2500 | 1000 | from3.0+3.3L/1000 | from3 | 2190 | 3850 | 3400 | 1690 | 3200 | 1200 | 6680 | 3000 | 450 | 1050 | ||
| NCA153010 | 1500 | 3000 | 1000 | from3.2+4L/1000 | from3.2 | 2260 | 3910 | 3420 | 1690 | 3700 | 1200 | 8120 | 3000 | 400 | 1050 | ||
| NCA152512 | 1500 | 2500 | 1200 | from3.2+4L/1000 | from3.2 | 2190 | 3850 | 3870 | 1690 | 3200 | 1400 | 6730 | 3000 | 400 | 1050 | ||
| NCA15XX12 | 1500 | XX | 1200 | from3.5+4L/1000 | from33.5 | 2255 | xx | 3890 | 1690 | xx | 1400 | xx | xx | xx | xx | ||
| NCA152515 | 1500 | 2500 | 1500 | from3.5+4L/1000 | from3.5 | 2190 | 3980 | 4500 | 1680 | 3330 | 1700 | 6950 | 3000 | 350 | 850 | ||
| NCA153015 | 1500 | 3000 | 1500 | from3.7+4L/1000 | from3.7 | 2260 | 4040 | 4520 | 1680 | 3830 | 1700 | 8440 | 3000 | 350 | 850 | ||
| NC163515 | 1600 | 3500 | 1500 | from3.7+4L/1000 | from3.7 | 2360 | 4540 | 4520 | 1780 | 4330 | 1700 | 9960 | 3000 | 350 | 850 | ||
| NCA16XX15 | 1600 | XX | 1500 | from3.7+4L/1000 | from3.7 | 2360 | xx | 4520 | 1780 | xx | 1700 | xx | xx | xx | xx | ||
| NCA18XX10 | 1800 | XX | 1000 | from3.5+4L/1000 | from3.5 | 2490 | xx | 3400 | 1990 | xx | 1200 | 6000 | 350 | 850 | |||
| NCA203015 | 2000 | 3000 | 1500 | from4.0+4L/1000 | from4.0 | 2760 | 4240 | 4520 | 2180 | 3930 | 1700 | 11200 | 6000 | 350 | 850 | ||
| NCA203018 | 2000 | 3000 | 1800 | from4.0+4L/1000 | from4.0 | 2760 | 4240 | 5120 | 2180 | 3930 | 2000 | 6000 | 350 | 850 | |||
